# KinoExRatatui
[](https://hex.pm/packages/kino_ex_ratatui)
[](https://hexdocs.pm/kino_ex_ratatui)
[](https://github.com/mcass19/kino_ex_ratatui/actions/workflows/ci.yml)
[](https://github.com/mcass19/kino_ex_ratatui/blob/main/LICENSE)

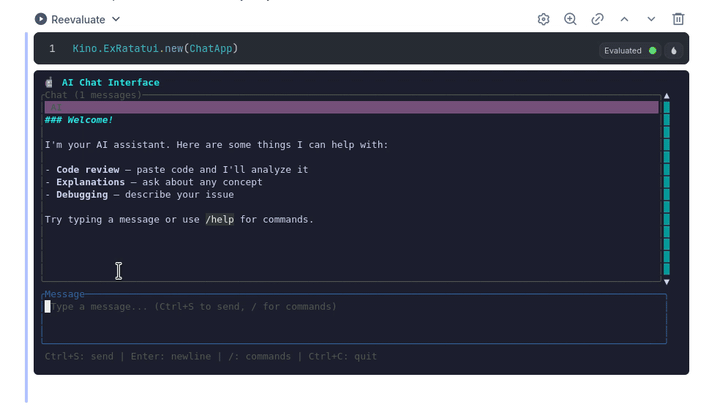

Run [ExRatatui](https://github.com/mcass19/ex_ratatui) apps inside [Livebook](https://livebook.dev) notebooks.
`KinoExRatatui` is a byte-stream transport that pipes the runtime's rendered ANSI through xterm.js and forwards keypresses and resize events back. Implemented as a `Kino.JS.Live` widget on top of `ExRatatui.Transport.ByteStream`.
## Features
- **Same App, same surface** — any module implementing `ExRatatui.App` runs unchanged.
- **Responsive sizing** — xterm.js's `FitAddon` derives cell dimensions and reports resize events; the App sees them as `%ExRatatui.Event.Resize{}` in `handle_event/2`.
- **Static frames** — `Kino.ExRatatui.frame/2` renders a one-shot `[{widget, rect}, ...]` list and ships the bytes to xterm.js. Useful for documentation, side-by-side comparisons via `Kino.Layout.grid/1`, screenshots, etc.
- **Themeable** — pass `:theme`, `:font_family`, `:font_size`, `:height`, `:cursor_blink`, `:scrollback`, and `:stopped_message` to `new/2` (or the static-friendly subset to `frame/2`) to override the defaults per cell. The `:theme` map is the full xterm.js [`ITheme`](https://xtermjs.org/docs/api/terminal/interfaces/itheme/) — 16 ANSI colors, selection, cursor accents, the lot. Use the `:dark` / `:light` / `:livebook` atom shorthands to pick a bundled palette; `:livebook` follows the user's `prefers-color-scheme` and live-switches.
- **Global defaults** — `Kino.ExRatatui.configure/1` writes display defaults to the `:kino_ex_ratatui` Application environment. Per-instance opts still win key-by-key. See the [Configuration guide](https://hexdocs.pm/kino_ex_ratatui/configuration.html).
- **Accessible stopped state** — when the runtime exits the widget renders a `role="status"` `aria-live="polite"` DOM overlay over the xterm container. Screen readers announce it; sighted users see a clean italic message instead of the frozen final frame. Customise the text with `:stopped_message`.
- **Zero browser-side state on cell re-eval** — re-running the cell tears the runtime down and starts a fresh one, matching every other `Kino.JS.Live` widget.
- **Telemetry** — `[:kino_ex_ratatui, :transport, :connect | :disconnect]`, `[:kino_ex_ratatui, :render, :frame]`, `[:kino_ex_ratatui, :input, :forward]`, and `[:kino_ex_ratatui, :resize]` events sit one layer above `ex_ratatui`'s own runtime/render telemetry. See the [Telemetry guide](https://hexdocs.pm/kino_ex_ratatui/telemetry.html) for the full event catalogue and a `Telemetry.Metrics` example.
## Examples
Four notebook examples live under [`examples/`](https://github.com/mcass19/kino_ex_ratatui/tree/main/examples) — open them in Livebook and run the cells. See the [catalog](https://github.com/mcass19/kino_ex_ratatui/blob/main/examples/README.md) for a one-liner per notebook and a recommended starting point.
## Installation
Add `kino_ex_ratatui` to your Livebook setup cell (or your project's `mix.exs`):
```elixir
Mix.install([
{:kino_ex_ratatui, "~> 0.2"}
])
```
### Prerequisites
- Elixir 1.17+
- Livebook 0.13+
## Quick Start
```elixir
defmodule Counter do
use ExRatatui.App
alias ExRatatui.Event.Key
alias ExRatatui.Layout.Rect
alias ExRatatui.Widgets.{Block, Paragraph}
def mount(_), do: {:ok, %{n: 0}}
def render(state, frame) do
[
{%Paragraph{
text: "Count: #{state.n}\n\n+ increment - decrement q quit",
block: %Block{title: "counter"}
},
%Rect{x: 0, y: 0, width: frame.width, height: frame.height}}
]
end
def handle_event(%Key{code: "+"}, s), do: {:noreply, %{s | n: s.n + 1}}
def handle_event(%Key{code: "-"}, s), do: {:noreply, %{s | n: s.n - 1}}
def handle_event(%Key{code: "q"}, s), do: {:stop, s}
def handle_event(_, s), do: {:noreply, s}
end
Kino.ExRatatui.new(Counter)
```
## Static frames
```elixir
alias ExRatatui.Layout.Rect
alias ExRatatui.Widgets.{Block, Paragraph}
Kino.ExRatatui.frame(
[
{%Paragraph{
text: "Hello from a static frame!",
block: %Block{title: "demo"}
},
%Rect{x: 0, y: 0, width: 40, height: 5}}
],
cols: 40,
rows: 5
)
```
`frame/2` renders the widget list once via `ExRatatui.Session`, ships the resulting ANSI to xterm.js, and stops. No event loop, no runtime server.
## How it works
`KinoExRatatui` implements `ExRatatui.Transport` as a byte-stream transport — the same shape as the built-in SSH transport. The wiring:
```
xterm.js (iframe) Kino.ExRatatui (Kino.JS.Live) ExRatatui.Server
───────────────── ───────────────────────────── ────────────────
onData(bytes) ──> handle_event("input", _) ──> {:ex_ratatui_event, _}
ResizeObserver ──> handle_event("resize", _) ──> {:ex_ratatui_resize, _, _}
xterm.write(bytes) <── broadcast_event("ansi", _) <── writer_fn.(bytes)
```
The runtime server starts lazily on the first `"resize"` event so the `ExRatatui.Session` opens at the exact dimensions xterm.js's FitAddon settled on. From there, input bytes round-trip through `ExRatatui.Transport.ByteStream.forward_input/3` (which absorbs synthesized `Event.Resize` events and dispatches everything else as `{:ex_ratatui_event, _}`). When the App returns `{:stop, _}`, the live widget catches the runtime's `:DOWN` and broadcasts a stop state message.
If you want to write your own transport, the [Custom Transports guide](https://hexdocs.pm/ex_ratatui/custom_transports.html) walks through the contract in full.
## Contributing
See [CONTRIBUTING.md](CONTRIBUTING.md) for development setup and guidelines.
KinoExRatatui is built on [ExRatatui](https://github.com/mcass19/ex_ratatui), a general-purpose terminal UI library for Elixir. If you're interested in improving the underlying rendering, widgets, or layout engine, contributions to ExRatatui are very welcome as well.
## License
MIT — see [LICENSE](https://github.com/mcass19/kino_ex_ratatui/blob/main/LICENSE).
